Our Products

LNJ uses opposed nozzles to accelerate particles into collisions. An internal classifier sends acceptable powder to collection and returns coarse particles to the milling zone. Size depends on classification, feed and material response as well as the nozzles. Coordinate gas conditions, system load and collection pressure drop.

LNJST retains particle-on-particle milling and classifier return while replacing open air with a compatible protective gas. After product collection, gas is filtered, conditioned and recompressed for reuse. Sealed feed and discharge interfaces, oxygen monitoring, make-up gas and pressure balancing maintain operating conditions. Nitrogen and argon are not interchangeable without checking material compatibility.

Conventional compressed-air preparation involves compression and cooling. Where the equipment and material allow it, this route retains heat from first-stage compression and converts gas energy into jet motion. Temperature can also affect delamination of minerals with cleavage or weak bonding planes. Compare it with cooled-air milling at the same product specification.

LNGS uses steam as the motive fluid. Particles accelerate and collide; a classifier sends acceptable powder to collection and returns coarse particles for further milling. The process can combine milling and drying or integrate steam generated from industrial waste heat. Direct use of a steam supply depends on pressure, temperature, cleanliness, continuity and the system heat balance.

The publicly described nano steam mill combines superheated steam with fine classification to explore submicron processing in a dry route. The name describes a technology direction rather than a nanoscale guarantee for every material. Agglomeration, analytical dispersion and whether the result is D50 or another metric all affect its meaning.

Closed-loop classification primarily changes the distribution of a powder population rather than grinding it further. Protective gas carries material through the classifier; coarse and fine products are collected separately and filtered gas recirculates. It shares sealing, monitoring and gas-conditioning requirements with inert jet milling, but has a different objective and energy input.

Jet shaping accelerates particles in gas and uses controlled interactions to modify edges or shape while separating the desired size fraction. Its action and equipment contact differ from mechanical shaping. For hard particles such as diamond and silicon carbide, evaluate shape change, fines generation and liner wear together.

A specialist name can describe an action mechanism, a system arrangement or an industry application. First establish whether the task is milling, deagglomeration, classification or morphology control, then compare the action and downstream handling. Historical names help locate the technical discussion; the proposal defines the current series, configuration and supply scope.

LNI mills through high-speed hammer impact and interaction with the liner, while an internal turbine classifier removes acceptable fines. Milling intensity, classifier speed, feed and airflow are coupled; increasing speed alone does not guarantee higher output or a narrower distribution. Fibrous and sticky feeds require attention to geometry, residence time and deposits.

Sulfur milling must address particle size, dust, temperature rise, adhesion and air exposure together. Nitrogen circulation provides a controlled atmosphere; the impact mill and classifier set particle size, while collection and sealed interfaces manage transfers. Protective gas does not replace an assessment of the feed, equipment, electrical systems, static charge and abnormal conditions.

Deagglomeration separates weakly bound particles; milling may instead fracture the particles themselves. These objectives require different energy and product evaluation. Adjusting intensity, residence time and classified discharge can release agglomerates while limiting unnecessary fines. Fragile primary particles require more careful selection of the action applied.

Powder moisture originates in feed, process gas and environmental exposure. Trace-moisture control must remove the removable water and limit re-uptake during collection, transfer, storage and packing. Distinguish adsorbed, free and structural water before defining temperature, residence and analysis, then select combined milling/drying or a separate treatment.

A specialist name can describe an action mechanism, a system arrangement or an industry application. First establish whether the task is milling, deagglomeration, classification or morphology control, then compare the action and downstream handling. Historical names help locate the technical discussion; the proposal defines the current series, configuration and supply scope.

Deagglomeration separates weakly bound particles; milling may instead fracture the particles themselves. These objectives require different energy and product evaluation. Adjusting intensity, residence time and classified discharge can release agglomerates while limiting unnecessary fines. Fragile primary particles require more careful selection of the action applied.

Feed is first screened by classification for particles already in the acceptable size range. Coarse particles enter milling, are promptly extracted and classified after collision, and return if still oversize. The focus is useful product inside a specified size window and the fines fraction. Historical LNJP target-mill and Jet Pulverizer names must be read with their configurations, rather than assumed to be separate equipment based on titles alone.

A specialist name can describe an action mechanism, a system arrangement or an industry application. First establish whether the task is milling, deagglomeration, classification or morphology control, then compare the action and downstream handling. Historical names help locate the technical discussion; the proposal defines the current series, configuration and supply scope.

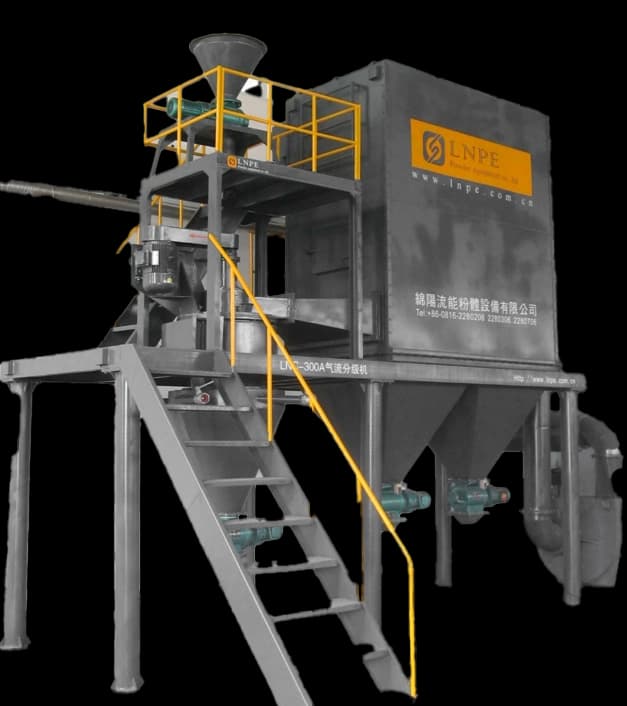

In dry classification, larger or heavier particles tend towards the coarse outlet under centrifugal action, while smaller or lighter particles follow the gas through the wheel. Size, density, shape and agglomeration all influence separation; a classifier is not a sieve with one fixed cut size for every material. Stable feeding and adequate dispersion are prerequisites for performance assessment.

One coarse/fine separation provides a main cut point. A narrow fraction may require coarse removal followed by fine removal, or a different sequence based on the feed distribution. Each stage changes the next stage's concentration and size distribution. Stage count should follow mass balance and recycle load, rather than simply the number of products.

Closed-loop classification primarily changes the distribution of a powder population rather than grinding it further. Protective gas carries material through the classifier; coarse and fine products are collected separately and filtered gas recirculates. It shares sealing, monitoring and gas-conditioning requirements with inert jet milling, but has a different objective and energy input.

A specialist name can describe an action mechanism, a system arrangement or an industry application. First establish whether the task is milling, deagglomeration, classification or morphology control, then compare the action and downstream handling. Historical names help locate the technical discussion; the proposal defines the current series, configuration and supply scope.

Mechanical shaping uses controlled impact, friction and separation to alter morphology and size distribution. Graphite commonly requires a balance of roundness, tap density and yield; mica or wollastonite may instead need plate-like or needle-like structure preserved. Shaping does not mean every material should become spherical.

Jet shaping accelerates particles in gas and uses controlled interactions to modify edges or shape while separating the desired size fraction. Its action and equipment contact differ from mechanical shaping. For hard particles such as diamond and silicon carbide, evaluate shape change, fines generation and liner wear together.

A continuous shaper feeds material into an active zone where friction, impact and classification produce and remove the desired product. Residence-time distribution and steady feeding influence consistency; classification and secondary cleaning air assist fine removal. Compare continuous, batch and multi-machine routes on the same feed and product requirements.

A graphite line is more than a shaping machine. Upstream milling establishes a suitable shaping feed; shaping changes morphology; classification separates coarse material, target product and fines; final blending improves batch consistency. Natural and synthetic graphite differ in structure, objectives and possible upstream/downstream processing and require separate flowsheets.

The publicly described nano steam mill combines superheated steam with fine classification to explore submicron processing in a dry route. The name describes a technology direction rather than a nanoscale guarantee for every material. Agglomeration, analytical dispersion and whether the result is D50 or another metric all affect its meaning.

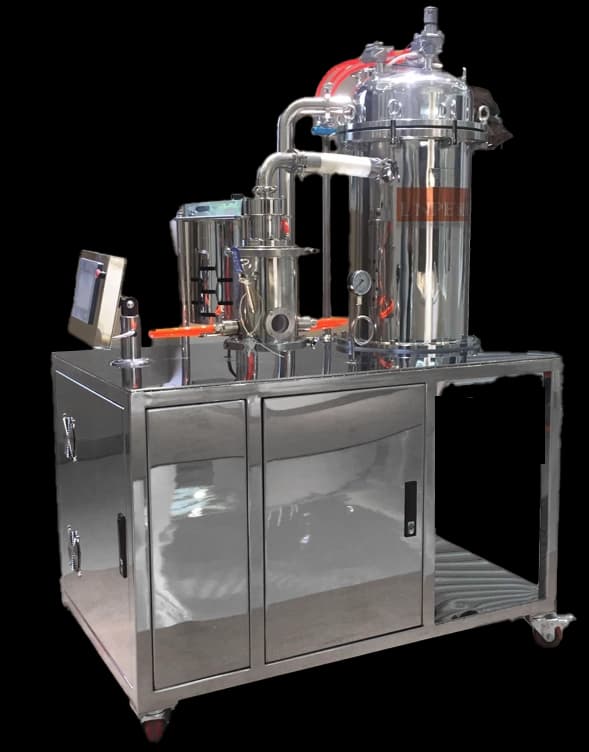

Laboratory equipment establishes material response and an operating window. Compact, accessible construction supports research changeovers, but industrial capacity cannot be obtained by simply multiplying laboratory output by machine size. Define the test objectives first, then choose the module, contact materials and atmosphere, recording feed, energy, collection and analytical results.

Configuration changes let the platform address different tasks: particle-collision milling in jet mode, impact action in mechanical mode and size-fraction separation in classifier mode. Integration simplifies experimental setup, but does not imply all three functions operate simultaneously or have identical sample and throughput requirements.

LNGS uses steam as the motive fluid. Particles accelerate and collide; a classifier sends acceptable powder to collection and returns coarse particles for further milling. The process can combine milling and drying or integrate steam generated from industrial waste heat. Direct use of a steam supply depends on pressure, temperature, cleanliness, continuity and the system heat balance.

A continuous shaper feeds material into an active zone where friction, impact and classification produce and remove the desired product. Residence-time distribution and steady feeding influence consistency; classification and secondary cleaning air assist fine removal. Compare continuous, batch and multi-machine routes on the same feed and product requirements.

Pneumatic conveying moves powder through pipes using a pressure difference between the gas source and receiver. Solids loading, velocity, bends, elevation and gas conditions jointly affect capacity, attrition, wear and plugging. Selection starts with the material and route, not horizontal distance or pipe diameter alone.

A dosing system organizes storage, weighing, transfer, mixing and downstream processing by batch. Weighing provides mass feedback, equipment control manages valves and sequences, and the production-management layer schedules work, tracks batches and produces reports. Weighing accuracy, residual material and recipe execution are separate issues requiring separate checks.

A feeding station transfers packaged raw material into the process. Bulk and small bags require different handling, opening and flow-assistance arrangements, but operator actions, dust capture, weighing and downstream reception form one process. Hygroscopic powders also require control of exposure time and gas exchange at the feeding/collection interface.

Packaging connects powder processing to final delivery. Upstream buffering and steady feed influence weighing and cycle time; bag connection, venting and dust extraction influence containment. Automation can extend from weighing/filling to robotic bag placement, sealing, wrapping and palletizing, with interfaces and responsibilities defined for each step.

Powder moisture originates in feed, process gas and environmental exposure. Trace-moisture control must remove the removable water and limit re-uptake during collection, transfer, storage and packing. Distinguish adsorbed, free and structural water before defining temperature, residence and analysis, then select combined milling/drying or a separate treatment.

Collection affects both product recovery and the airflow/pressure balance of milling and conveying. Cyclones separate more readily collected particles through swirling flow; bags, cartridges or sintered media retain powder on a filtration surface. Filters require suitable cleaning and discharge to maintain airflow. Filter efficiency or emissions cannot be assigned directly to a cyclone.

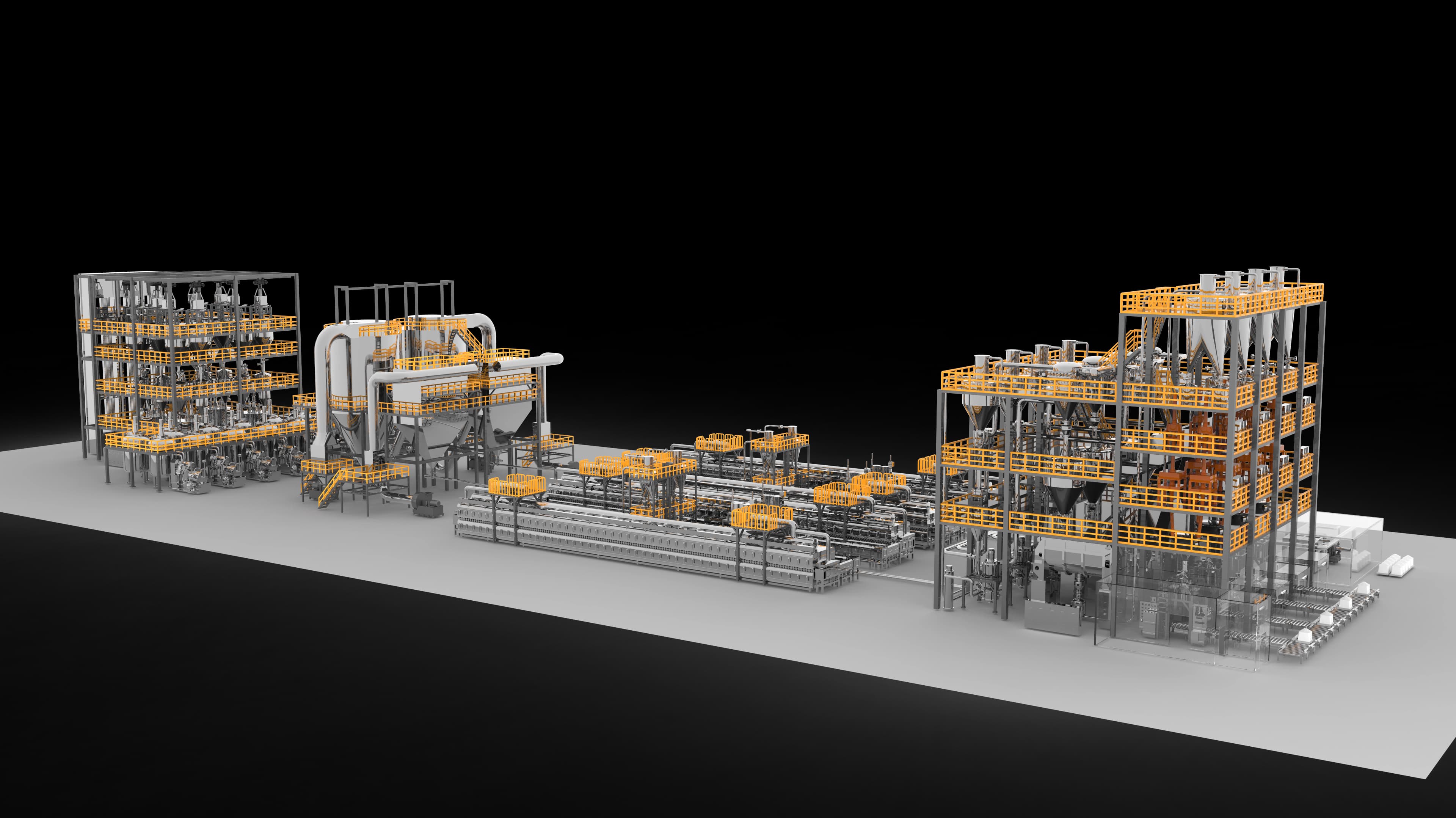

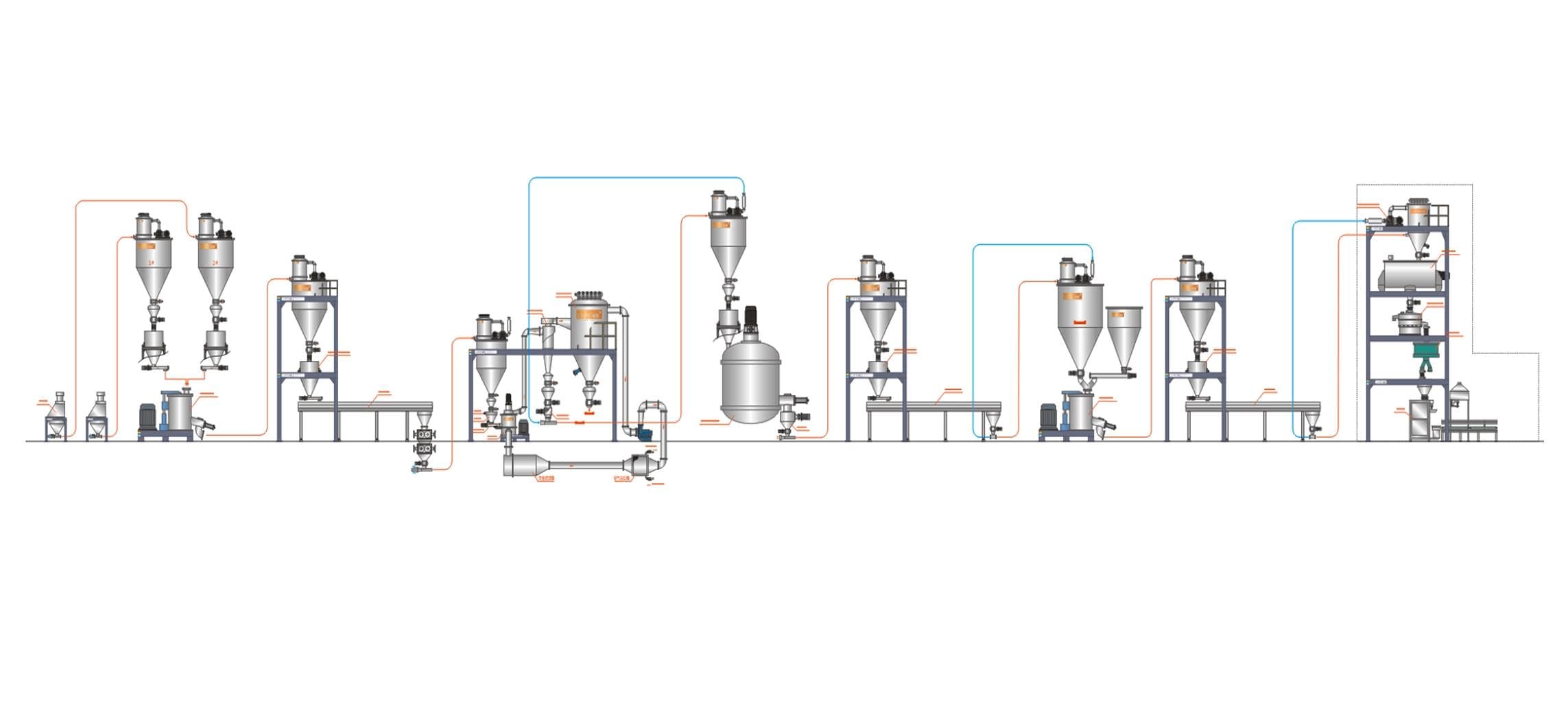

Battery-material EPC starts by allocating final size, moisture, impurity and batch-consistency targets to individual operations, then defining equipment and controls. Precursor synthesis, wet processing, drying and firing may involve different suppliers. A unit shown in a flowsheet is not necessarily manufactured by the same party; the line proposal defines supply scope, interface responsibility and acceptance criteria.

A graphite line is more than a shaping machine. Upstream milling establishes a suitable shaping feed; shaping changes morphology; classification separates coarse material, target product and fines; final blending improves batch consistency. Natural and synthetic graphite differ in structure, objectives and possible upstream/downstream processing and require separate flowsheets.

Retrofits are constrained by existing equipment, buildings, utilities and controls. Insufficient milling, distribution tails, deposits, unstable conveying, filter pressure drop and moisture variability can be connected. Identify the limiting step first; replacing one machine may not resolve the line-level issue.

Engineering addresses more than finer grinding. Feed variability, impurities, moisture, wear, energy, stream destinations and outputs jointly define the route. Fine-powder lines, bulk-residue processing and recycling/separation have different criteria and require distinct mass balances, product specifications and facility boundaries.
