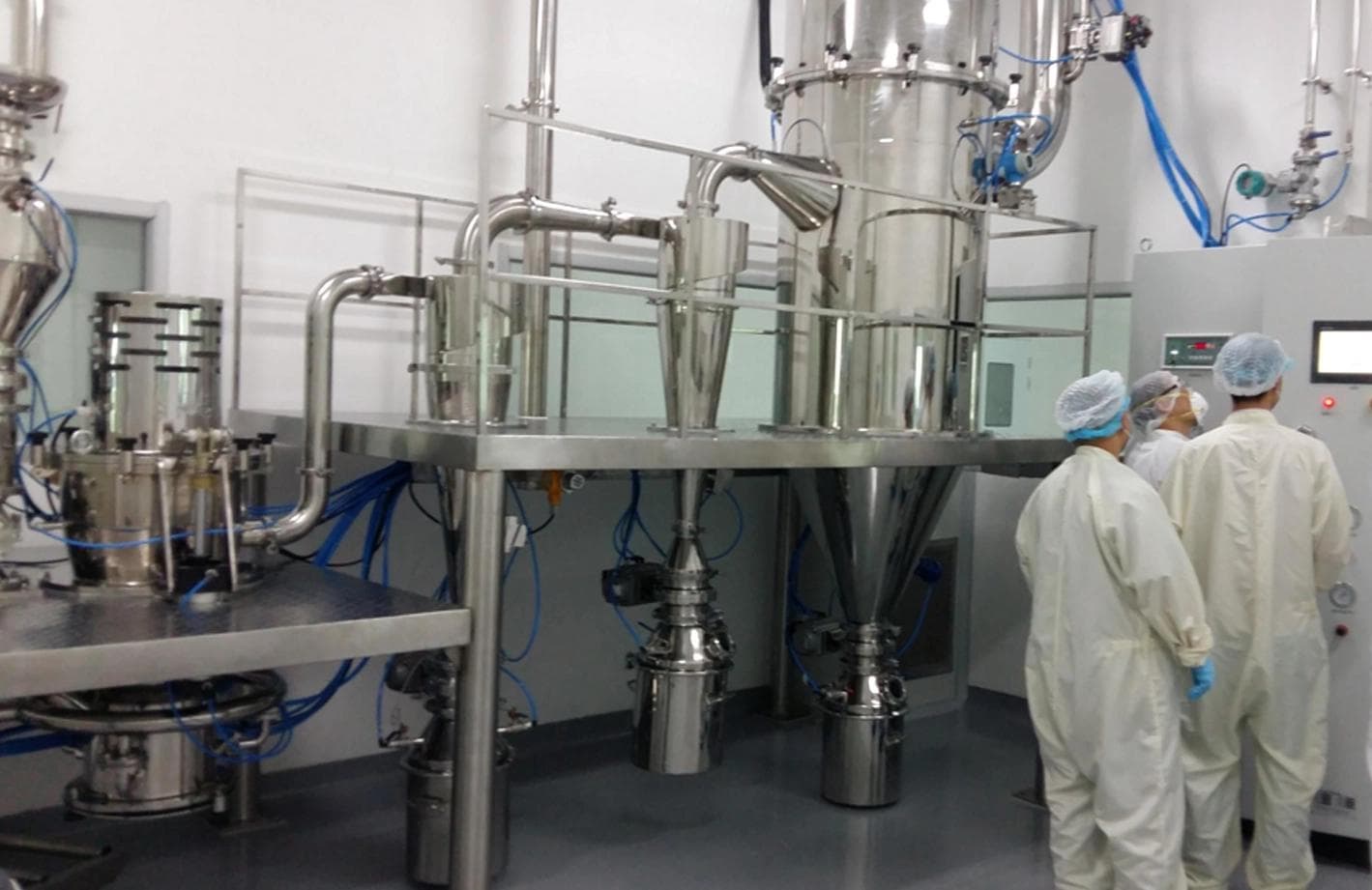

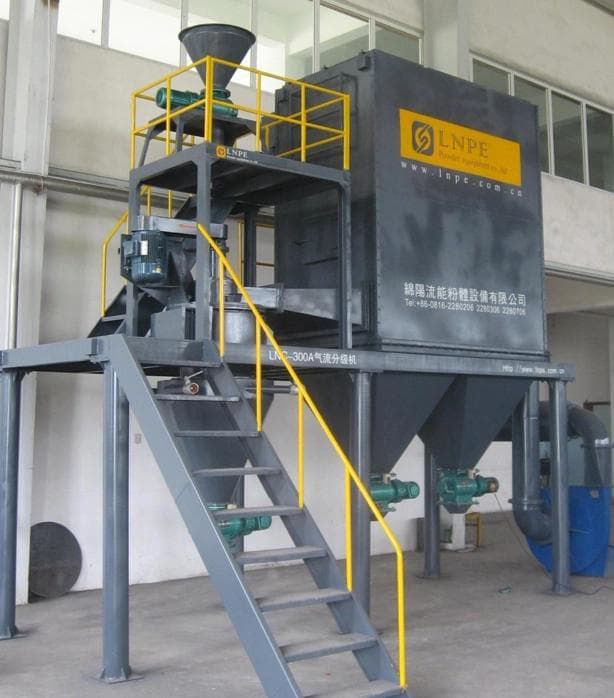

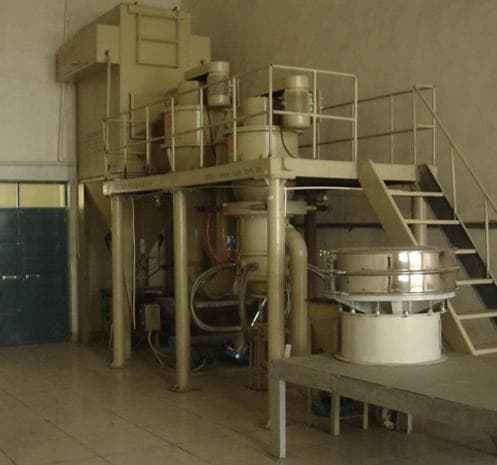

LNPE air classifiers separate powder according to particle size, density and morphology. The rotating classifying wheel generates a centrifugal field, while the carrier airflow supplies an opposing drag force.

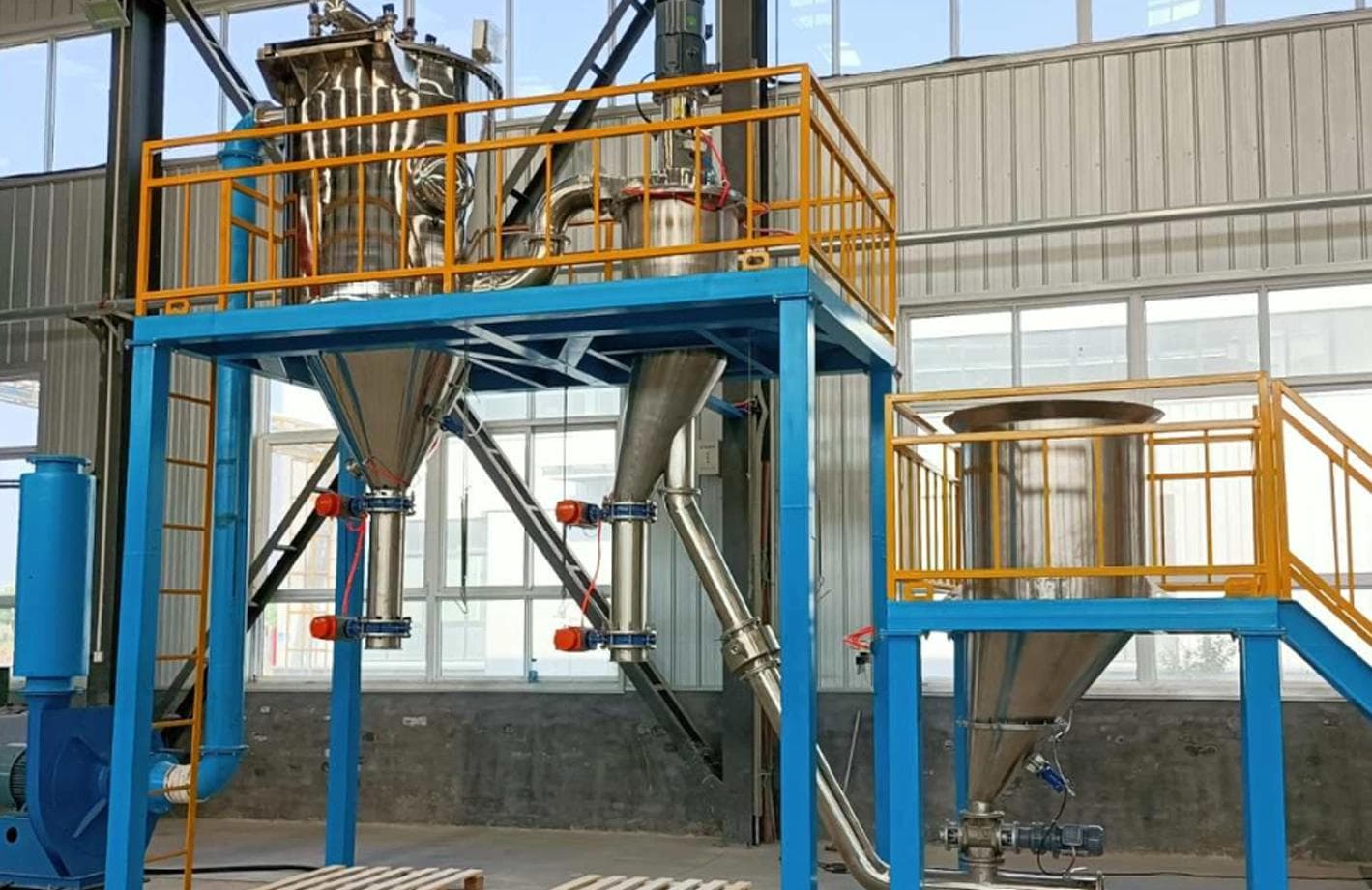

Air-classification system · Equipment illustration
Process Role
Particle classification
Separation Basis
Particle size and density
Cut Control
Wheel speed and airflow
System Type
Airflow and classifying wheel
Technical overview
Large or heavy particles experience a dominant centrifugal force, are flung outward beyond the wheel, and descend along the chamber wall to the coarse-product outlet.
Small or light particles encounter a weaker centrifugal force; the drag of the airflow prevails, steering them through the wheel vanes into the fine-product stream.
Key Features
01
Precision separation by particle size, density, and morphology
02
CFD-optimised airflow, solids concentration, and pressure profile for each design
03
Adjustable cut conditions with separate coarse and fine product recovery
04
Multiple interchangeable classifier-wheel geometries for efficient handling of diverse powders
Explore equipment variants, line modules and selection guidance by processing task.
Precision classification and O-Sepa configurationsGas flow and a rotating classifier wheel separate particles, supported by dispersion, sealing and secondary air.
In dry classification, larger or heavier particles tend towards the coarse outlet under centrifugal action, while smaller or lighter particles follow the gas through the wheel. Size, density, shape and agglomeration all influence separation; a classifier is not a sieve with one fixed cut size for every material. Stable feeding and adequate dispersion are prerequisites for performance assessment.
Information needed for selection
Provide full feed size distribution, density, shape, agglomeration, moisture, coarse-removal or dedusting targets, desired recovery at each outlet and throughput.

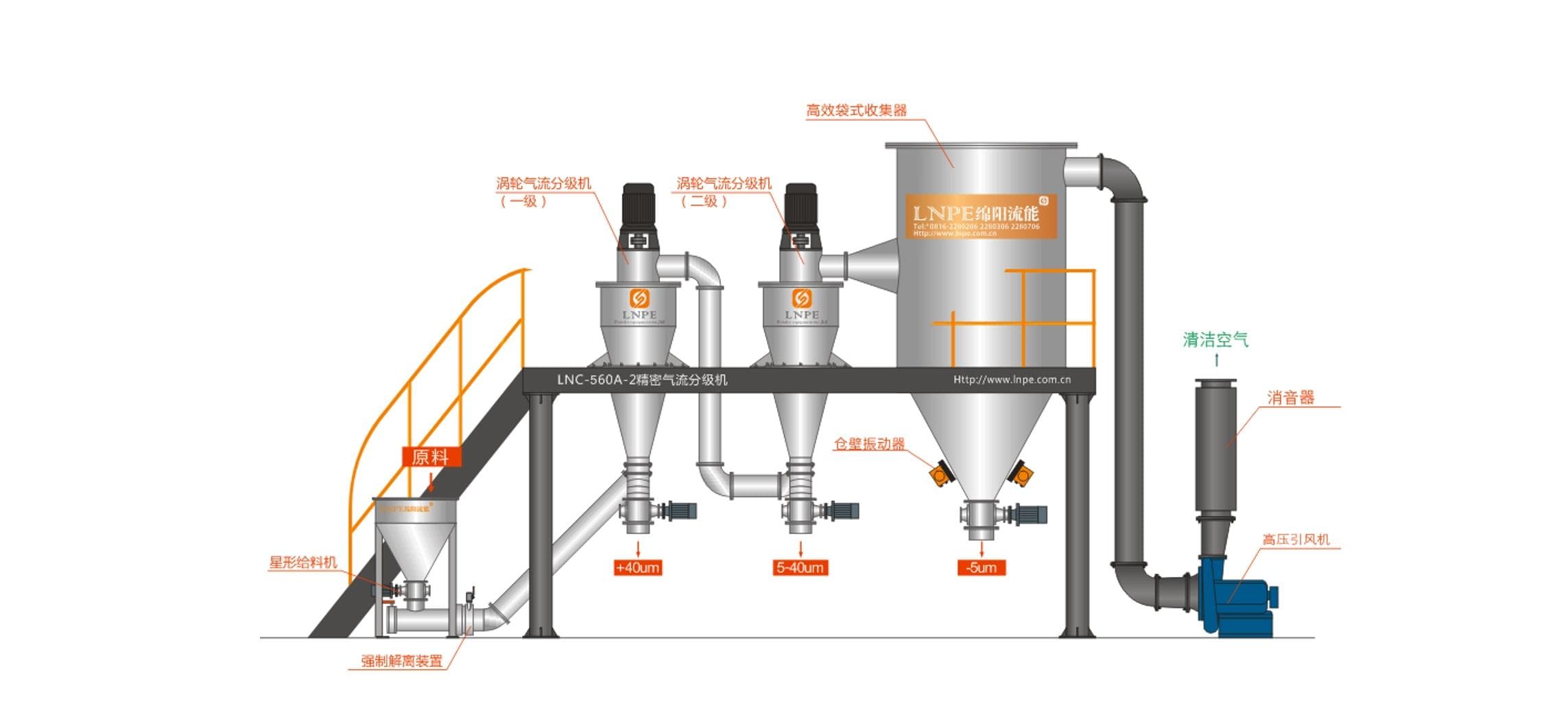

Multi-stage classification and narrow fractionsUse two or more separation stages to define a size window and manage coarse, target and fine fractions separately.
One coarse/fine separation provides a main cut point. A narrow fraction may require coarse removal followed by fine removal, or a different sequence based on the feed distribution. Each stage changes the next stage's concentration and size distribution. Stage count should follow mass balance and recycle load, rather than simply the number of products.
Information needed for selection
Submit each product's size window, expected mass fraction, feed variability, cross-fraction limits, conveying arrangements and available space.
Inert-gas closed-loop classificationLNCST separates size fractions in a controlled atmosphere, either for existing powder or within a closed-loop milling system.
Closed-loop classification primarily changes the distribution of a powder population rather than grinding it further. Protective gas carries material through the classifier; coarse and fine products are collected separately and filtered gas recirculates. It shares sealing, monitoring and gas-conditioning requirements with inert jet milling, but has a different objective and energy input.
Information needed for selection
Provide size distribution, density, magnetic behaviour, atmosphere requirements, separation targets, collection method and upstream/downstream pressures.
Special configurations and application-specific selectionCompare target/rotary-jet, vortex, standalone-impact and centrifugal configurations against a defined material and processing objective.
A specialist name can describe an action mechanism, a system arrangement or an industry application. First establish whether the task is milling, deagglomeration, classification or morphology control, then compare the action and downstream handling. Historical names help locate the technical discussion; the proposal defines the current series, configuration and supply scope.
Information needed for selection
Provide a historical model or equipment photo if available, material information, end use, target size/quality, current issues and utilities.
Understand D10/D50/D90, cut size, yield, tap density, specific surface area and system-energy boundaries.
One size or efficiency number cannot describe a powder process. Measurement basis, dispersion, sampling location, feed and operating conditions define its meaning. Technical data should state what is measured, how it is measured and which stream/system boundary it represents.
D10, D50 and D90
These are the sizes at which the cumulative distribution reaches 10%, 50% and 90% on the stated basis. Laser diffraction commonly reports a volume distribution; specify volume, number or mass basis and dispersion conditions. Equal D50 values do not imply equal coarse and fine tails.
Cut size and classification efficiency
Cut size characterizes how particles of a given size partition between coarse and fine streams. Classification-efficiency definitions vary; provide the calculation and feed/product masses. Neither is the same quantity as product D50.
Yield and recovery
Yield may mean the mass of the target size fraction relative to feed; recovery may refer to total powder or a target component. Define numerator, denominator and treatment of recycle and retained material.
Sphericity, circularity and aspect ratio
Sphericity describes similarity to a sphere in three dimensions and is not identical to two-dimensional image circularity. Aspect ratio can compare long/short axes or diameter/thickness for platelets. State imaging sampling and calculation methods.
Tap density and specific surface area
Tap density is powder mass per settled volume under a specified tapping procedure; specific surface area is surface area per unit mass. Size, shape, porosity and methods influence both. Neither alone establishes electrochemical or other functional performance.
Temperature, purity and specific energy
Low temperature needs a measurement point and run duration. Contamination control requires contact materials, analytes and detection limits. Specific energy uses acceptable product mass as its denominator and states inclusion of compression, steam, classification, collection and drying.
The LNJ Jet Mill utilizes multiple nozzles to generate high-velocity, sonic-speed airflow, enabling ultrafine pulverization of materials through particle-on-particle collisions. The finely ground particles are then carried into a high-efficiency turbine classifier, where oversized particles are separated and returned to the grinding chamber for further processing.
The LNPE Impact Mill combines two size-reduction mechanisms - high-speed hammer impact and hammer-to-liner compression - to achieve ultrafine grinding in a single continuous process. After comminution, material enters the built-in turbine classifier.
The Jet Pulverizer combines pre-classification, controlled particle impact and prompt separation to target a defined particle-size window while limiting unnecessary fines.
