Morphology System / Morphology Control

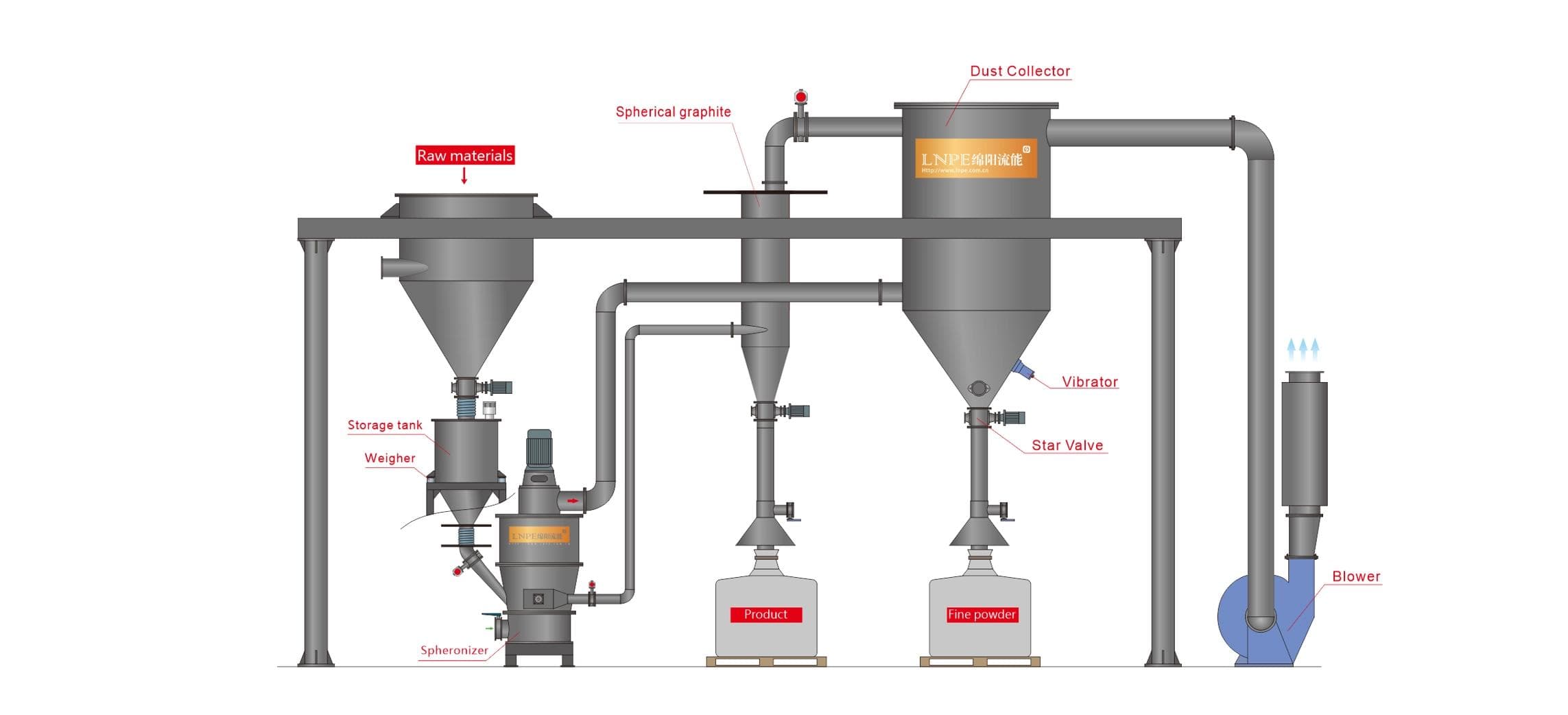

The LNPE Shaping Mill employs a high-speed rotor-stator assembly inside a precisely engineered airflow field. Feed powder is accelerated into the shaping zone, where controlled particle-particle and particle-wall collisions round sharp edges, smooth surfaces, or accentuate aspect ratios as required.
Mechanical shaping equipment · Equipment illustration
Process Role
Particle morphology control
Particle Outcome
Spheroidal, prismatic, high-aspect
Control Mode
Rotor, airflow, classifier cut-point
System Type
Dynamic classifier loop
A built-in dynamic classifier separates the specified size fraction. Material requiring further shaping is returned according to the process arrangement.
By tuning rotor speed, airflow, and classifier cut-point, the system delivers narrowly distributed particles in the target morphology.
Morphology on demand - spheroidal, prismatic, or high-aspect shapes
Coordinated shaping and sizing
Modular rotor for diverse powders
Contact-material options for purity control
Process settings balance quality and operating consumption
Explore equipment variants, line modules and selection guidance by processing task.
Mechanical shaping uses controlled impact, friction and separation to alter morphology and size distribution. Graphite commonly requires a balance of roundness, tap density and yield; mica or wollastonite may instead need plate-like or needle-like structure preserved. Shaping does not mean every material should become spherical.
Information needed for selection
Provide source and processing history, microscopy, size/morphology/tap-density targets, intended use of fines, impurity limits and capacity.
Jet shaping accelerates particles in gas and uses controlled interactions to modify edges or shape while separating the desired size fraction. Its action and equipment contact differ from mechanical shaping. For hard particles such as diamond and silicon carbide, evaluate shape change, fines generation and liner wear together.
Information needed for selection
Provide feed microscopy, hardness, size distribution, morphology targets, fines limits, purity and available gas supply.
A continuous shaper feeds material into an active zone where friction, impact and classification produce and remove the desired product. Residence-time distribution and steady feeding influence consistency; classification and secondary cleaning air assist fine removal. Compare continuous, batch and multi-machine routes on the same feed and product requirements.
Information needed for selection
Provide feed variability, hourly output, continuous operating duration, morphology/density targets, fines handling and upstream/downstream buffer arrangements.
A graphite line is more than a shaping machine. Upstream milling establishes a suitable shaping feed; shaping changes morphology; classification separates coarse material, target product and fines; final blending improves batch consistency. Natural and synthetic graphite differ in structure, objectives and possible upstream/downstream processing and require separate flowsheets.
Information needed for selection
Submit graphite type/source, feed size and microscopy, target fraction, morphology/tap-density/impurity requirements, output and the proposed use of fines.
Equipment specifications depend on the feed and system conditions. These inputs establish a comparable trial plan and technical configuration.
Series and configuration references
LNP · LNP-132U
The selection proposal defines specifications, combinations and supply scope.
| Input | Used to establish |
|---|---|
| Feed identity, composition, size and moisture | Milling/dispersion difficulty, pretreatment and feeding |
| Target D10/D50/D90 and upper/lower limits | Milling intensity, classifier cuts and fines control |
| Output, batches and operating hours | Equipment size, buffers, continuous duty and line rate |
| Purity, magnetic impurities, temperature and morphology | Contact materials, atmosphere and tests |
| Gas/steam pressure, temperature, flow and quality | Utilities, conditioning and protective circuits |
| Power, footprint and maintenance access | Layout, interfaces and serviceability |
| Stream yields, energy boundaries and test methods | Trial mass balance and acceptance conditions |
| Upstream discharge and downstream collection/packing | Supply scope and process handoff |
Understand D10/D50/D90, cut size, yield, tap density, specific surface area and system-energy boundaries.
One size or efficiency number cannot describe a powder process. Measurement basis, dispersion, sampling location, feed and operating conditions define its meaning. Technical data should state what is measured, how it is measured and which stream/system boundary it represents.
These are the sizes at which the cumulative distribution reaches 10%, 50% and 90% on the stated basis. Laser diffraction commonly reports a volume distribution; specify volume, number or mass basis and dispersion conditions. Equal D50 values do not imply equal coarse and fine tails.
Cut size characterizes how particles of a given size partition between coarse and fine streams. Classification-efficiency definitions vary; provide the calculation and feed/product masses. Neither is the same quantity as product D50.
Yield may mean the mass of the target size fraction relative to feed; recovery may refer to total powder or a target component. Define numerator, denominator and treatment of recycle and retained material.
Sphericity describes similarity to a sphere in three dimensions and is not identical to two-dimensional image circularity. Aspect ratio can compare long/short axes or diameter/thickness for platelets. State imaging sampling and calculation methods.
Tap density is powder mass per settled volume under a specified tapping procedure; specific surface area is surface area per unit mass. Size, shape, porosity and methods influence both. Neither alone establishes electrochemical or other functional performance.
Low temperature needs a measurement point and run duration. Contamination control requires contact materials, analytes and detection limits. Specific energy uses acceptable product mass as its denominator and states inclusion of compression, steam, classification, collection and drying.
