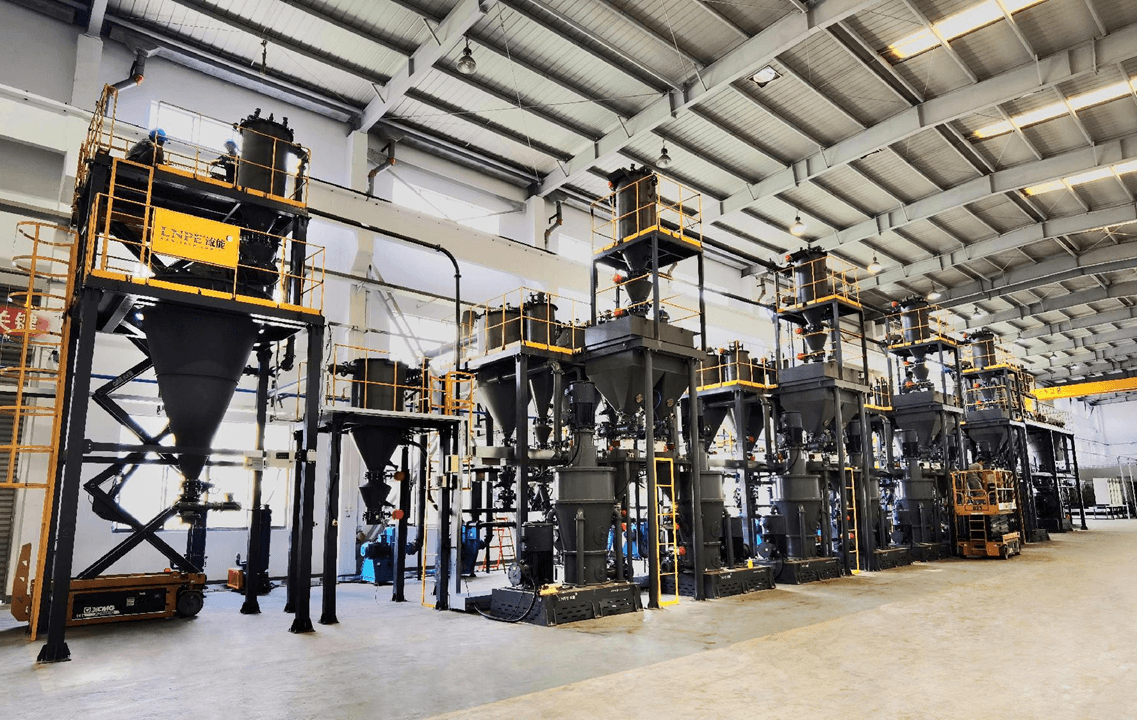

Particle shaping combines controlled impact, friction and classification to adjust particle edges and morphology. This equipment record introduces the shaping route, its supporting systems and the information required to evaluate a similar application.
View featured caseFilter documented LNPE equipment deployments by application focus and process role.
6 projects shown
Particle shaping combines controlled impact, friction and classification to adjust particle edges and morphology. This equipment record introduces the shaping route, its supporting systems and the information required to evaluate a similar application.
The processing objective is defined by the material: graphite spheroidization, edge rounding or a particular aspect-ratio requirement. A shaping route is selected around these objectives rather than particle size alone.
The engineering scope can combine feed preparation, a shaping stage, classification, collection and product handling. The number of stages, liner materials and gas circuit depend on the feed and product specification.

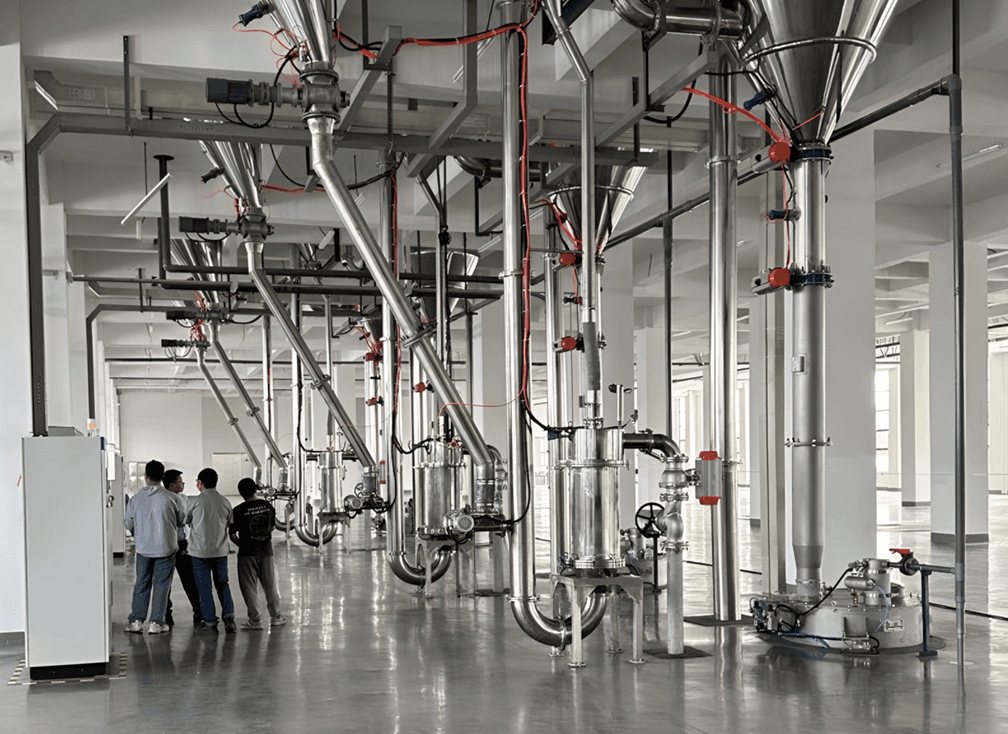

Controlled jet pulverization adjusts processing intensity for powders that need deagglomeration or limited size reduction. The route is evaluated against oversize removal, fines generation, particle integrity and contact-material requirements.
The application may call for breaking agglomerates while retaining primary particles, or reducing a feed to a specified size band. These are different objectives and require different trial settings.
Source application discussions include post-sintering ternary materials, glass beads and metallic silicon. Mention of an application identifies a route to assess, not a confirmed result for this photo record.
These figures are historical test references from different years. Their correspondence with the site photographs has not been confirmed; they do not establish a single test batch or acceptance results for this project.

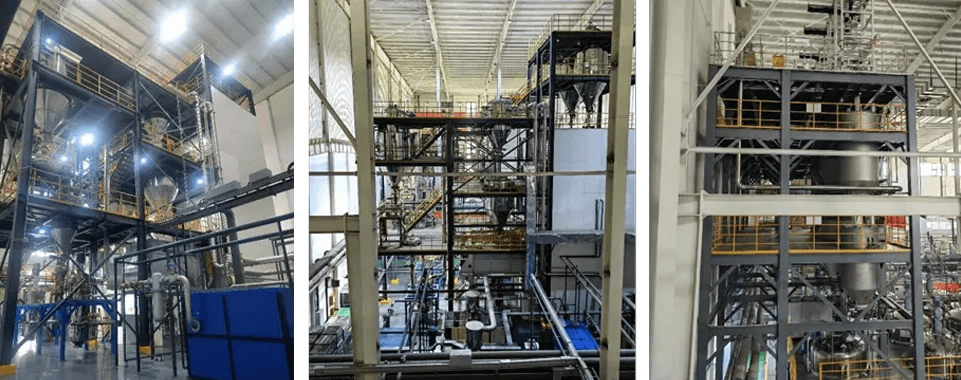

An integrated powder line connects material feeding, processing, separation, conveying and packaging. EPC planning coordinates equipment interfaces, site conditions, controls and the agreed installation and handover scope.
A new line starts from the required product and feed characteristics. The process may include dosing, mixing, grinding, classification, screening, magnetic separation, collection and packaging as needed.
A retrofit also requires an assessment of existing equipment capacity, layout, utilities and control interfaces. New and retained equipment must be assigned clear responsibilities and acceptance boundaries.

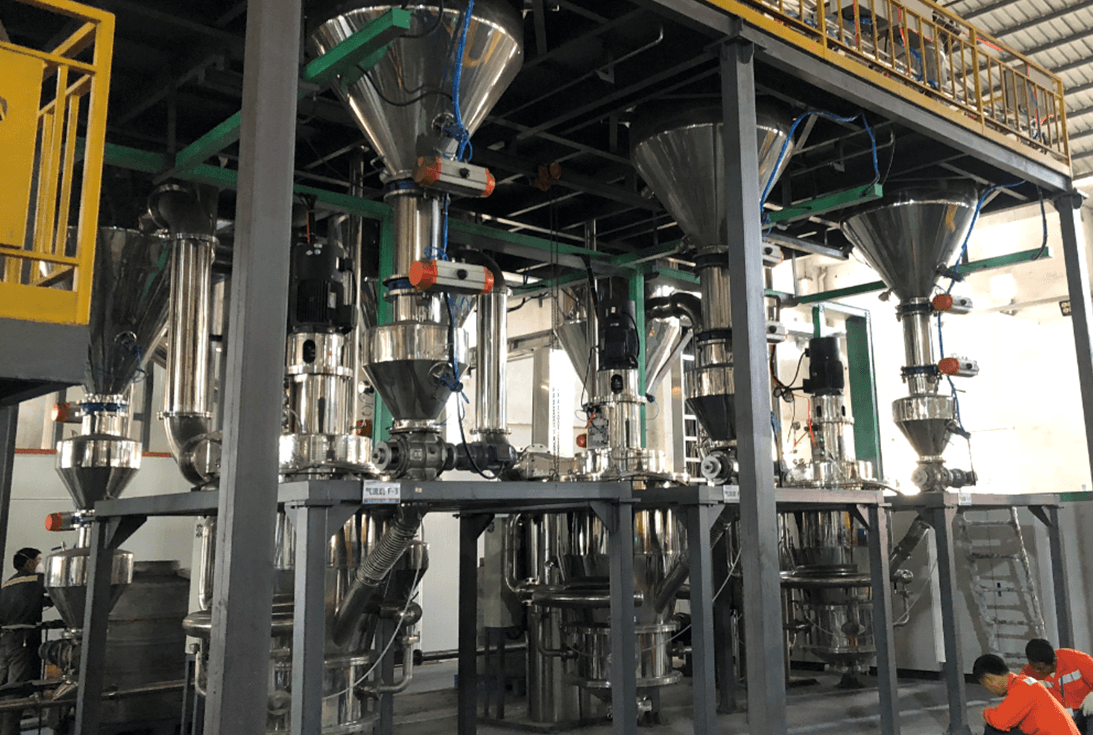

LFP post-treatment combines particle-size control with moisture and contamination management. Jet milling and classification are evaluated alongside collection, material-contact surfaces and subsequent handling.
The objective is to obtain the agreed particle-size distribution while controlling moisture pickup and material contamination during post-treatment. The feed’s sintering history and agglomeration state affect the processing route.
Source materials also discuss combining grinding with micro-moisture drying. Such integration is an optional process choice and does not establish that every LFP jet-mill installation has the same drying configuration.

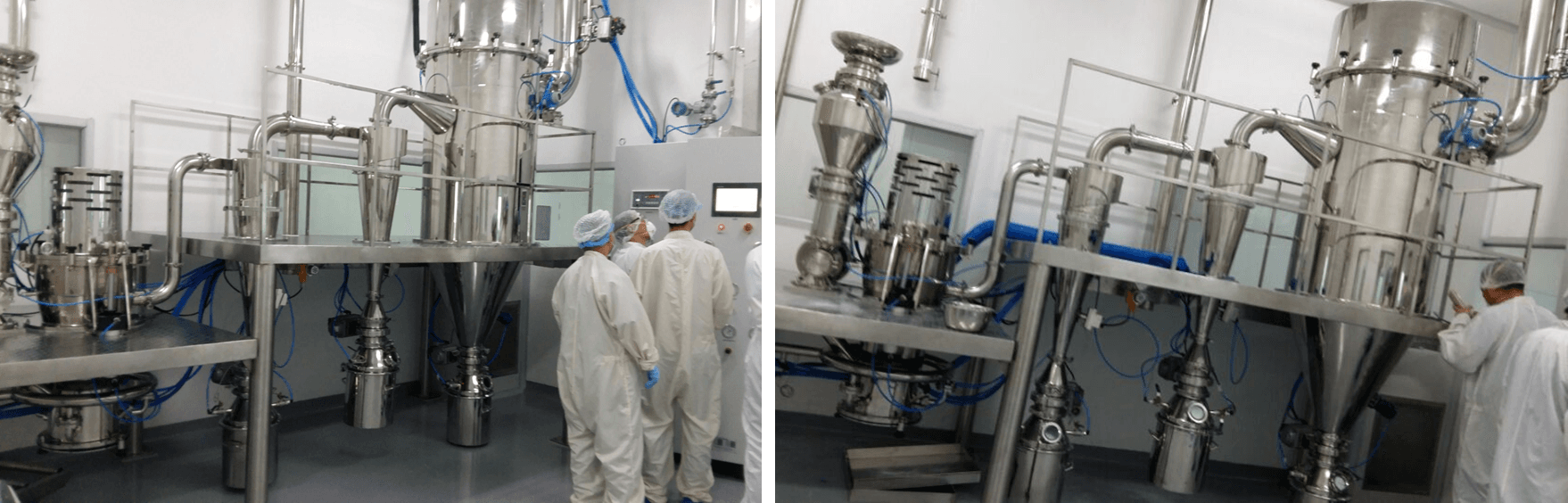

Air classification separates a feed into defined particle-size fractions. A project may remove coarse particles, reduce excess fines or produce a narrower size band, with collection paths selected for each fraction.
Classification uses the balance between aerodynamic drag and centrifugal separation around a rotating classifier. Its cut point depends on the material as well as operating conditions.
Single-stage or multi-stage arrangements are evaluated according to the required product band. Coarse material may be retained, returned for grinding or collected separately; recirculation is a process decision.

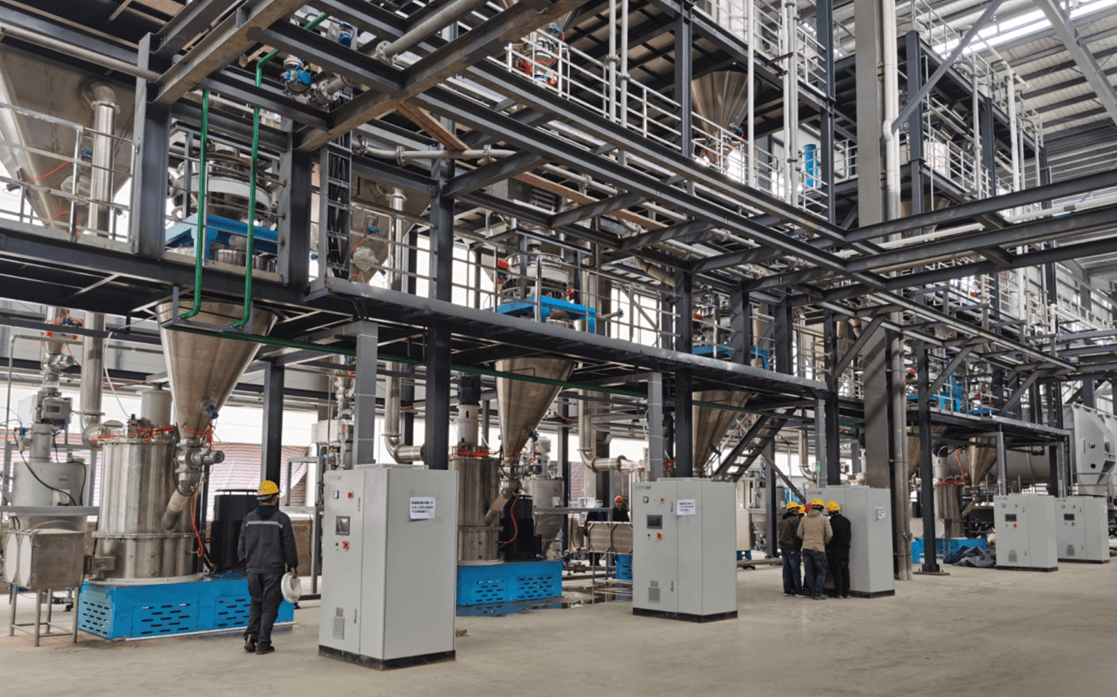

A classifying impact mill combines mechanical size reduction with particle-size separation. Rotor configuration, classifier operation and the air circuit are selected around the feed’s hardness, stickiness, fibres and temperature sensitivity.
Mechanical impact reduces particle size, while the classifier controls which fraction leaves the grinding stage. Coarser material remains for further processing according to the system design.
Feed variability, wear, heat generation, adhesion and cleaning requirements influence configuration. A sticky or fibrous material needs a dedicated trial rather than an assumption of universal suitability.
Explore material-specific processing objectives and the tests that inform equipment selection.
Post-sintering treatment must distinguish deagglomeration from primary-particle breakage. Compare controlled jet and conventional jet routes using the same feed and target band.
Evaluate fines, remaining coarse particles and microscopy together; D50 alone does not establish particle preservation.
Related equipment →Glass-bead processing requires a defined product band and attention to fines, iron contamination and contact-part wear. Controlled processing intensity is a route to assess.
Use the same feed, accepted-product definition and energy boundary; specific energy must state its mass denominator.
Related equipment →Metallic silicon processing balances product size band, morphology and contamination control. Recovery for one narrow band cannot be generalized to all silicon powders.
Record feed grade, lower and upper size limits, fines, the iron-test method and contact-part condition.
Related equipment →Jet performance depends on pressure, temperature and flow. Identical nozzles do not automatically imply an identical system-energy boundary.
Account for gas preparation, heating, the mill and auxiliaries at comparable product quality and throughput.
Related equipment →Steam produced from industrial waste heat can be assessed for ash dispersion, grinding and classification, followed by evaluation for the intended building-material use.
Ash origin, moisture and chemistry matter. Cementitious-use tests must define dosage, curing age and method.
Related equipment →This ash differs from conventional fly ash. Scale-up must consider composition, moisture, flow and intended product use.
Historic design capacities do not guarantee a new project. Representative feed is needed to verify continuous operation, collection and consistency.
Related equipment →Particle size can affect activity evaluation. Select grinding conditions against product use and the available energy supply.
Test activity using an agreed method and recalculate electricity and steam costs for actual conditions; historical estimates are not quotations.
Related equipment →Distinguish free moisture from crystal water. Grinding and drying temperatures must reflect the required product phase.
Evaluate particle size, moisture and phase composition where applicable; total mass loss alone does not establish suitability.
Related equipment →Combining glass-plant waste heat with coke milling requires assessment of heat-source variation, product size and subsequent fuel conveying.
Define material and dust risks, gas circuit, temperature and monitoring in the system design. Steam use does not by itself establish risk-free operation.
Related equipment →Pseudo-boehmite, lignite, active calcium silicate and petroleum coke differ in moisture, thermal response and end use; one drying result cannot represent all four.
Confirm each identity, initial moisture, product requirement and post-treatment properties. Pseudo-boehmite is not automatically interchangeable with boehmite.
Related equipment →Silicon carbide, pyrophyllite, black talc, illite and quartz differ in hardness, structure and purity requirements. Evaluate the steam-processing route separately.
Record feed size, steam conditions, product distribution and contact-part wear. A series name does not establish the same achievable size for every material.
Related equipment →Changing the product-size target changes processing duty. Compare throughput and energy at the same product specification.
Use comparable feed and measurement methods, and include all energy inputs at actual prices in the cost evaluation.
Related equipment →Keep an explicit link between material name, grade, batch, processing conditions and the measurement report.
Check dispersion method, instrument range and sample identifier before comparing results. Do not combine one material’s description with another material’s size plot.
Related equipment →Polishing and abrasive applications may limit both coarse particles and fines. Distinguish coarse removal, fines removal and recovery of an intermediate band.
Measure each product stream’s size distribution and recovery; D50 or classifier speed alone does not describe separation quality.
Related equipment →Graphite scrap, needle petroleum coke and natural graphite cannot share a single set of shaping claims. Select the route around feed morphology and the accepted product.
Compare morphology, tap density, particle size and accepted-product yield, retaining sample identification and a mass balance.
Related equipment →Coordinate particle size, moisture and magnetic-contamination control with conveying and packaging.
Define magnetic-particle count, size threshold, sample quantity and method together. A count unit alone is not a complete specification.
Related equipment →Pulse and induced airflow remove accumulated powder from filter surfaces. Evaluate cleaning with pressure drop, filtration state and powder characteristics.
Record filter area, flow, pressure drop, pulse conditions and emission measurements. The cleaning principle alone does not establish an emission guarantee.
