Controlled Pulverization / Grinding & Pulverizing
The Jet Pulverizer combines pre-classification, controlled particle impact and prompt separation to target a defined particle-size window while limiting unnecessary fines.

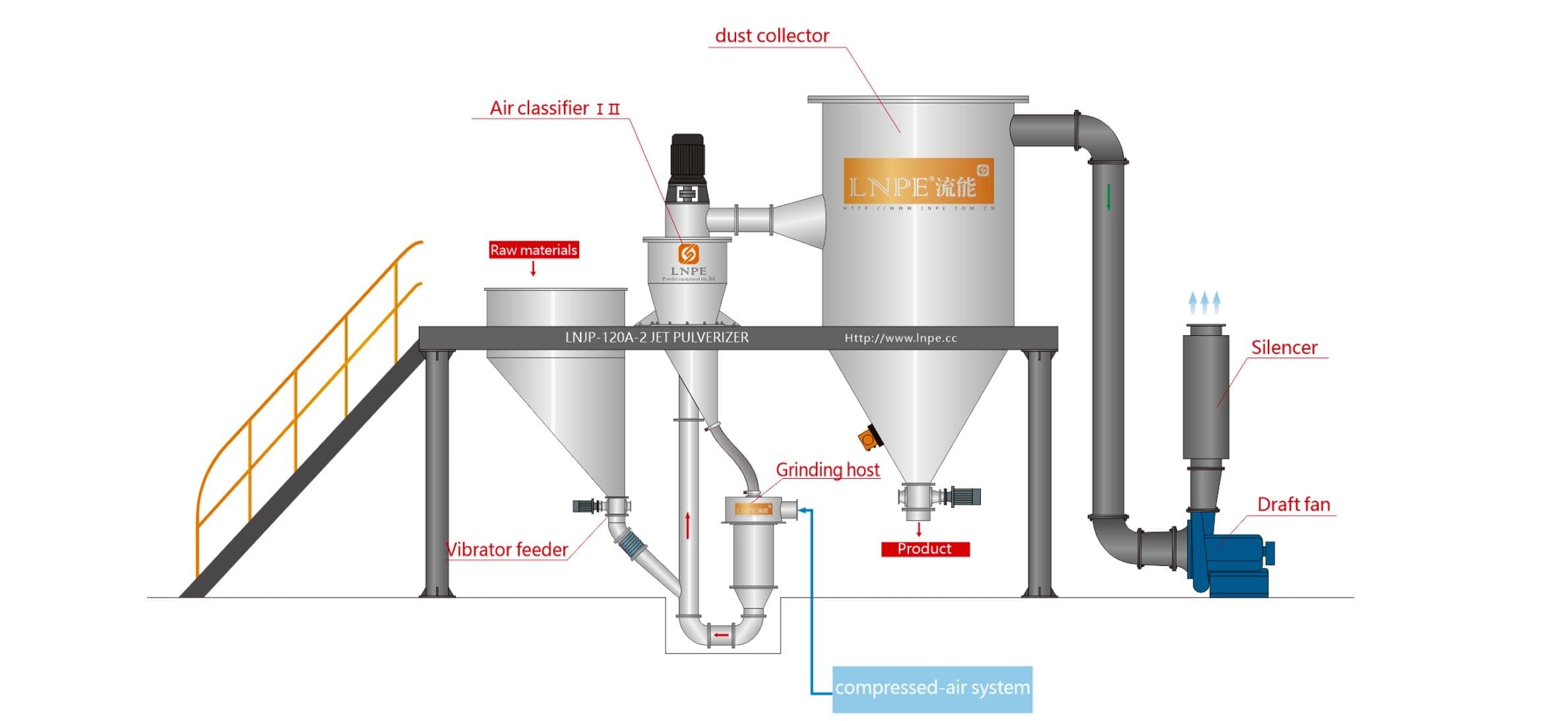

Jet pulverization and classification system · Equipment illustration
Process Role
Grinding and classification
Particle Control
Strict size requirements
Residence Time
Short residence with prompt separation
System Type
Classifier-first loop
Immediate classification removes material already within specification as feed stock enters the unit.
Oversized particles enter the milling chamber for controlled impact before returning promptly to the classifier.
Short residence and prompt removal of acceptable particles help limit repeated milling and unwanted fines. The operating window is established through material trials.
Controlled grinding, high yield, stable particle size, low energy consumption, and large output
The milling strength is easy to control, high yield, low fine powder content
Minimal impact on particle surface morphology, with little damage to the shape of particles
Explore equipment variants, line modules and selection guidance by processing task.
Deagglomeration separates weakly bound particles; milling may instead fracture the particles themselves. These objectives require different energy and product evaluation. Adjusting intensity, residence time and classified discharge can release agglomerates while limiting unnecessary fines. Fragile primary particles require more careful selection of the action applied.
Information needed for selection
Provide before/after samples or microscopy, the process causing agglomeration, primary/agglomerate sizes, fines limits, coating requirements and target output.
Feed is first screened by classification for particles already in the acceptable size range. Coarse particles enter milling, are promptly extracted and classified after collision, and return if still oversize. The focus is useful product inside a specified size window and the fines fraction. Historical LNJP target-mill and Jet Pulverizer names must be read with their configurations, rather than assumed to be separate equipment based on titles alone.
Information needed for selection
Provide upper/lower size limits, permitted fines, the feed fraction already within specification, particle/coating strength, purity and output requirements.
A specialist name can describe an action mechanism, a system arrangement or an industry application. First establish whether the task is milling, deagglomeration, classification or morphology control, then compare the action and downstream handling. Historical names help locate the technical discussion; the proposal defines the current series, configuration and supply scope.
Information needed for selection
Provide a historical model or equipment photo if available, material information, end use, target size/quality, current issues and utilities.
Equipment specifications depend on the feed and system conditions. These inputs establish a comparable trial plan and technical configuration.
Series and configuration references
LNJP
The selection proposal defines specifications, combinations and supply scope.
| Input | Used to establish |
|---|---|
| Feed identity, composition, size and moisture | Milling/dispersion difficulty, pretreatment and feeding |
| Target D10/D50/D90 and upper/lower limits | Milling intensity, classifier cuts and fines control |
| Output, batches and operating hours | Equipment size, buffers, continuous duty and line rate |
| Purity, magnetic impurities, temperature and morphology | Contact materials, atmosphere and tests |
| Gas/steam pressure, temperature, flow and quality | Utilities, conditioning and protective circuits |
| Power, footprint and maintenance access | Layout, interfaces and serviceability |
| Stream yields, energy boundaries and test methods | Trial mass balance and acceptance conditions |
| Upstream discharge and downstream collection/packing | Supply scope and process handoff |
Understand D10/D50/D90, cut size, yield, tap density, specific surface area and system-energy boundaries.
One size or efficiency number cannot describe a powder process. Measurement basis, dispersion, sampling location, feed and operating conditions define its meaning. Technical data should state what is measured, how it is measured and which stream/system boundary it represents.
These are the sizes at which the cumulative distribution reaches 10%, 50% and 90% on the stated basis. Laser diffraction commonly reports a volume distribution; specify volume, number or mass basis and dispersion conditions. Equal D50 values do not imply equal coarse and fine tails.
Cut size characterizes how particles of a given size partition between coarse and fine streams. Classification-efficiency definitions vary; provide the calculation and feed/product masses. Neither is the same quantity as product D50.
Yield may mean the mass of the target size fraction relative to feed; recovery may refer to total powder or a target component. Define numerator, denominator and treatment of recycle and retained material.
Sphericity describes similarity to a sphere in three dimensions and is not identical to two-dimensional image circularity. Aspect ratio can compare long/short axes or diameter/thickness for platelets. State imaging sampling and calculation methods.
Tap density is powder mass per settled volume under a specified tapping procedure; specific surface area is surface area per unit mass. Size, shape, porosity and methods influence both. Neither alone establishes electrochemical or other functional performance.
Low temperature needs a measurement point and run duration. Contamination control requires contact materials, analytes and detection limits. Specific energy uses acceptable product mass as its denominator and states inclusion of compression, steam, classification, collection and drying.
