Turnkey EPC

LNGS uses steam as the motive fluid. Particles accelerate and collide; a classifier sends acceptable powder to collection and returns coarse particles for further milling. The process can combine milling and drying or integrate steam generated from industrial waste heat. Direct use of a steam supply depends on pressure, temperature, cleanliness, continuity and the system heat balance.

A continuous shaper feeds material into an active zone where friction, impact and classification produce and remove the desired product. Residence-time distribution and steady feeding influence consistency; classification and secondary cleaning air assist fine removal. Compare continuous, batch and multi-machine routes on the same feed and product requirements.

Pneumatic conveying moves powder through pipes using a pressure difference between the gas source and receiver. Solids loading, velocity, bends, elevation and gas conditions jointly affect capacity, attrition, wear and plugging. Selection starts with the material and route, not horizontal distance or pipe diameter alone.

A dosing system organizes storage, weighing, transfer, mixing and downstream processing by batch. Weighing provides mass feedback, equipment control manages valves and sequences, and the production-management layer schedules work, tracks batches and produces reports. Weighing accuracy, residual material and recipe execution are separate issues requiring separate checks.

A feeding station transfers packaged raw material into the process. Bulk and small bags require different handling, opening and flow-assistance arrangements, but operator actions, dust capture, weighing and downstream reception form one process. Hygroscopic powders also require control of exposure time and gas exchange at the feeding/collection interface.

Packaging connects powder processing to final delivery. Upstream buffering and steady feed influence weighing and cycle time; bag connection, venting and dust extraction influence containment. Automation can extend from weighing/filling to robotic bag placement, sealing, wrapping and palletizing, with interfaces and responsibilities defined for each step.

Powder moisture originates in feed, process gas and environmental exposure. Trace-moisture control must remove the removable water and limit re-uptake during collection, transfer, storage and packing. Distinguish adsorbed, free and structural water before defining temperature, residence and analysis, then select combined milling/drying or a separate treatment.

Collection affects both product recovery and the airflow/pressure balance of milling and conveying. Cyclones separate more readily collected particles through swirling flow; bags, cartridges or sintered media retain powder on a filtration surface. Filters require suitable cleaning and discharge to maintain airflow. Filter efficiency or emissions cannot be assigned directly to a cyclone.

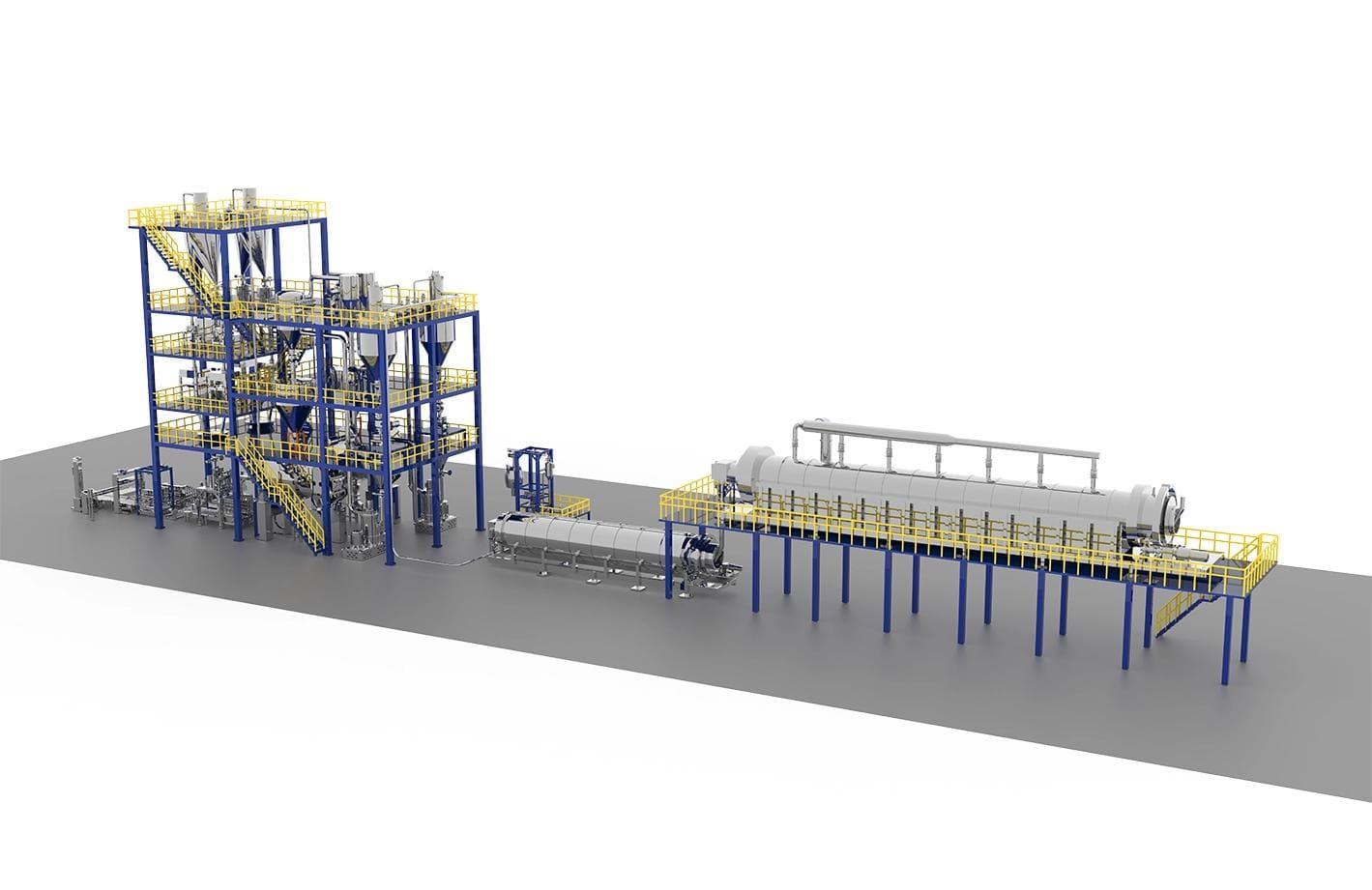

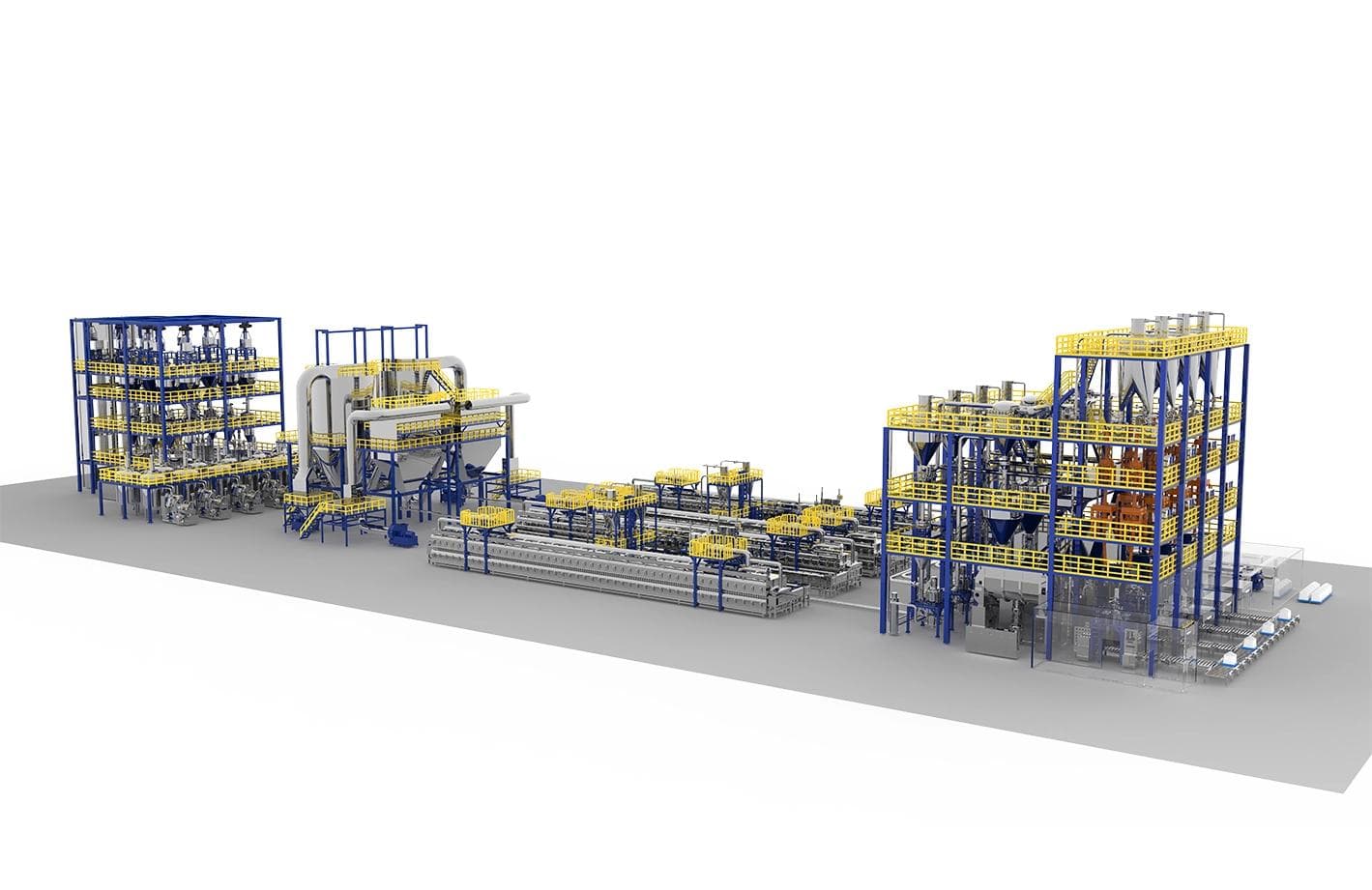

Battery-material EPC starts by allocating final size, moisture, impurity and batch-consistency targets to individual operations, then defining equipment and controls. Precursor synthesis, wet processing, drying and firing may involve different suppliers. A unit shown in a flowsheet is not necessarily manufactured by the same party; the line proposal defines supply scope, interface responsibility and acceptance criteria.

A graphite line is more than a shaping machine. Upstream milling establishes a suitable shaping feed; shaping changes morphology; classification separates coarse material, target product and fines; final blending improves batch consistency. Natural and synthetic graphite differ in structure, objectives and possible upstream/downstream processing and require separate flowsheets.

Retrofits are constrained by existing equipment, buildings, utilities and controls. Insufficient milling, distribution tails, deposits, unstable conveying, filter pressure drop and moisture variability can be connected. Identify the limiting step first; replacing one machine may not resolve the line-level issue.

Engineering addresses more than finer grinding. Feed variability, impurities, moisture, wear, energy, stream destinations and outputs jointly define the route. Fine-powder lines, bulk-residue processing and recycling/separation have different criteria and require distinct mass balances, product specifications and facility boundaries.

These are the sizes at which the cumulative distribution reaches 10%, 50% and 90% on the stated basis. Laser diffraction commonly reports a volume distribution; specify volume, number or mass basis and dispersion conditions. Equal D50 values do not imply equal coarse and fine tails.

Cut size characterizes how particles of a given size partition between coarse and fine streams. Classification-efficiency definitions vary; provide the calculation and feed/product masses. Neither is the same quantity as product D50.

Yield may mean the mass of the target size fraction relative to feed; recovery may refer to total powder or a target component. Define numerator, denominator and treatment of recycle and retained material.

Sphericity describes similarity to a sphere in three dimensions and is not identical to two-dimensional image circularity. Aspect ratio can compare long/short axes or diameter/thickness for platelets. State imaging sampling and calculation methods.

Tap density is powder mass per settled volume under a specified tapping procedure; specific surface area is surface area per unit mass. Size, shape, porosity and methods influence both. Neither alone establishes electrochemical or other functional performance.

Low temperature needs a measurement point and run duration. Contamination control requires contact materials, analytes and detection limits. Specific energy uses acceptable product mass as its denominator and states inclusion of compression, steam, classification, collection and drying.
