Jet Mill

LNJ uses opposed nozzles to accelerate particles into collisions. An internal classifier sends acceptable powder to collection and returns coarse particles to the milling zone. Size depends on classification, feed and material response as well as the nozzles. Coordinate gas conditions, system load and collection pressure drop.

LNJST retains particle-on-particle milling and classifier return while replacing open air with a compatible protective gas. After product collection, gas is filtered, conditioned and recompressed for reuse. Sealed feed and discharge interfaces, oxygen monitoring, make-up gas and pressure balancing maintain operating conditions. Nitrogen and argon are not interchangeable without checking material compatibility.

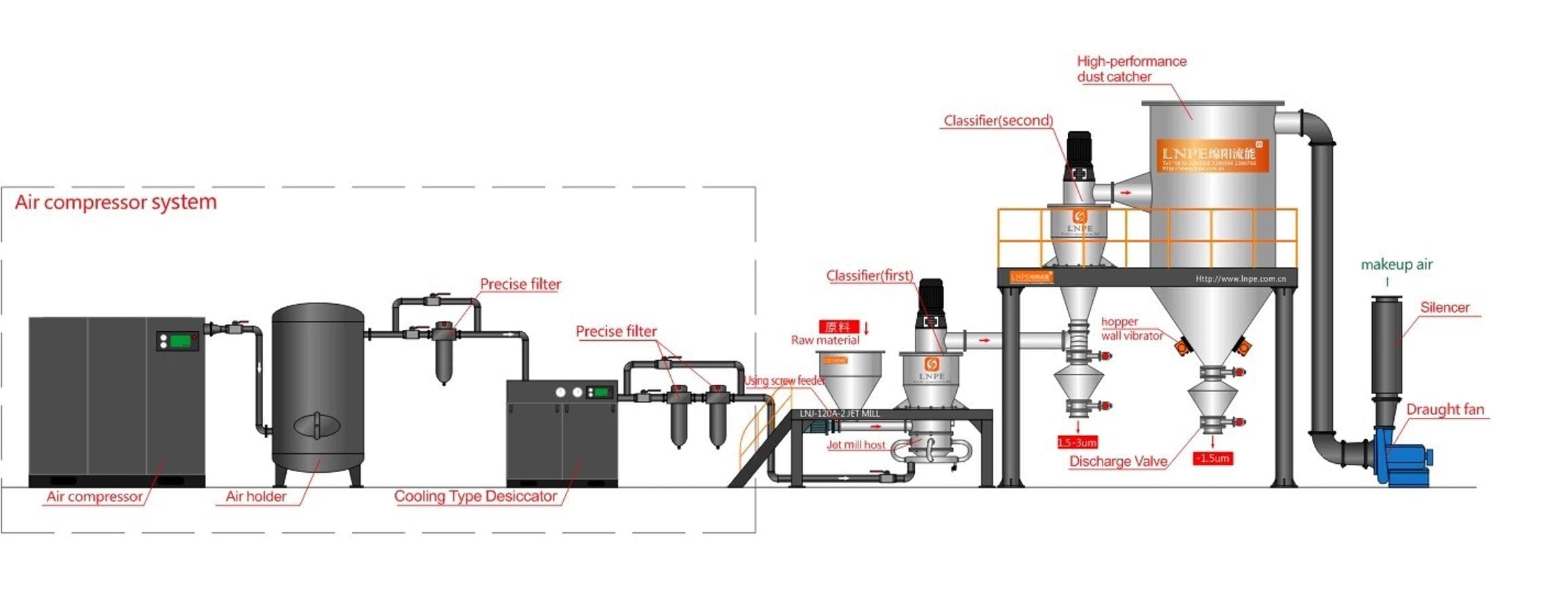

Conventional compressed-air preparation involves compression and cooling. Where the equipment and material allow it, this route retains heat from first-stage compression and converts gas energy into jet motion. Temperature can also affect delamination of minerals with cleavage or weak bonding planes. Compare it with cooled-air milling at the same product specification.

LNGS uses steam as the motive fluid. Particles accelerate and collide; a classifier sends acceptable powder to collection and returns coarse particles for further milling. The process can combine milling and drying or integrate steam generated from industrial waste heat. Direct use of a steam supply depends on pressure, temperature, cleanliness, continuity and the system heat balance.

The publicly described nano steam mill combines superheated steam with fine classification to explore submicron processing in a dry route. The name describes a technology direction rather than a nanoscale guarantee for every material. Agglomeration, analytical dispersion and whether the result is D50 or another metric all affect its meaning.

Closed-loop classification primarily changes the distribution of a powder population rather than grinding it further. Protective gas carries material through the classifier; coarse and fine products are collected separately and filtered gas recirculates. It shares sealing, monitoring and gas-conditioning requirements with inert jet milling, but has a different objective and energy input.

Jet shaping accelerates particles in gas and uses controlled interactions to modify edges or shape while separating the desired size fraction. Its action and equipment contact differ from mechanical shaping. For hard particles such as diamond and silicon carbide, evaluate shape change, fines generation and liner wear together.

A specialist name can describe an action mechanism, a system arrangement or an industry application. First establish whether the task is milling, deagglomeration, classification or morphology control, then compare the action and downstream handling. Historical names help locate the technical discussion; the proposal defines the current series, configuration and supply scope.

These are the sizes at which the cumulative distribution reaches 10%, 50% and 90% on the stated basis. Laser diffraction commonly reports a volume distribution; specify volume, number or mass basis and dispersion conditions. Equal D50 values do not imply equal coarse and fine tails.

Cut size characterizes how particles of a given size partition between coarse and fine streams. Classification-efficiency definitions vary; provide the calculation and feed/product masses. Neither is the same quantity as product D50.

Yield may mean the mass of the target size fraction relative to feed; recovery may refer to total powder or a target component. Define numerator, denominator and treatment of recycle and retained material.

Sphericity describes similarity to a sphere in three dimensions and is not identical to two-dimensional image circularity. Aspect ratio can compare long/short axes or diameter/thickness for platelets. State imaging sampling and calculation methods.

Tap density is powder mass per settled volume under a specified tapping procedure; specific surface area is surface area per unit mass. Size, shape, porosity and methods influence both. Neither alone establishes electrochemical or other functional performance.

Low temperature needs a measurement point and run duration. Contamination control requires contact materials, analytes and detection limits. Specific energy uses acceptable product mass as its denominator and states inclusion of compression, steam, classification, collection and drying.
